钢带



我们可以提供各类线缆用钢铝带、不锈钢带,更多信息,请联系: sales@qdhetian.com

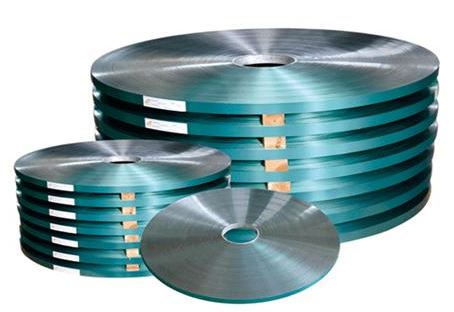

1. Copolymer coated steel tape

CCST consists of a steel tape coated on both sides with adherent ethylene copolymer .Steel tape is made of chrome-plated cold-rolled steel tape

CCST consists of a steel tape coated on both sides with adherent ethylene copolymer. Steel tape is made of chrome-plated cold-rolled steel tape , its chemical composition complying with the China Telecommunication Industry Standard YD / T723.3. The copolymer exhibits excellent adhesion to the steel substrate and has the chemical resistence and general characteristics of lower density polyethylene , it bonds to low , linear low , medium and high density polyethylene.

ItemUnitRequirementTolerance
Length      m1000-5000±50
            Width      mm12-1100±0.5
  ThicknessSteel Tape      mm0.155/0.200±0.010
Copolymer(EAA)      mm0.058±0.013
Total      mm0.260/0.310±0.015
Chrome-Coated contents      g/㎡0.08-0.34
Tensile Strength      Mpa310-390
Break Elongation%≥15
Peel Strength      N/cm≥6.13
Heat Seal Strength      N/cm≥17.5
Water Resistance 68±1℃,168h      N/cm≥6.13
Jelly Resistance 68±1℃,168h      ---No Separation
Dielectric Strength DC 2KV,1 min      ---Without breakdown
Corrosion Resistance 0.1mol/L,Hcl,480h      GradeGrade 8
Appearance:plain,smooth,uniform,free from foreign matters,wrinkles,piebald and other defects.



2. Stainless Steel Composite Tape

It is mainly applied in special optical cable and other cable products

1、It is mainly applied in special optical cable and other cable products.

2、Type:304、316L;



ItemUnitRequirement  Tolerance
Lengthm1000-4500±50
Widthmm12-420±0.3
  ThicknessStainless Steel Tapemm0.100-0.200±8%
Copolymer(EAA)mm0.05±8%
Totalmm0.200-0.300±8%
Yield StrengthN/m㎡≥170
Hardness Test---≦200
Tensile StrengthMpa≥460
Break Elongation%≥40
Peel StrengthN/cm≥5.0
Heat Seal StrengthN/cm≥17.5
Appearance:plain,smooth,uniform,free from foreign matters,wrinkles,piebald and other defects.


3. Chrome plated steel tape

 Glossy surface without tin re-melt treatment after chrome plating on a mat with a rough and matt surface

Chrome plate introduction:
Chromium plate coil refers to a steel plate coated with a layer of chromium to prevent the surface of the steel plate from corrosion and prolong its service life. The surface of the steel plate is coated with a layer of metallic chromium. Chromium is a frequently used and effective method of preservation. .

Chrome plating method:
Insoluble anodes made of lead and lead-bismuth alloys, which only transmit electrons and conduct current. The chromium ion concentration in the electrolyte needs to be maintained by periodically adding a chromium compound to the bath.
The chrome plated coil is made of a low-carbon steel sheet, but the chrome plating layer is thin (<1.3 m&m;m), and the process is the same as that of the tin plate.

Chrome plate features:
The chrome plate roll has four layers of structure: a steel substrate, a metallic chromium layer, a hydrated chromium oxide layer, and an oil film. Since the substrates are the same, the mechanical properties are the same as those of tinplates, but there are some unique features in their application:
1. The cost is about 10% lower than that of tinplate. The appearance of gloss is not as good as that of tinplate.
2. Corrosion resistance is lower than that of tin plate. The coating is thin and the pin hole rate is high. Therefore, the inner and outer surfaces must be coated when using.
3. Chrome plate has strong adhesion and adhesion to organic coating is 3-6 times stronger than tin plate. Sulfidation resistance is also stronger than tinplate.
4. The chrome plate cannot be soldered and can only be lap welded or bonded.
5. The coating is thin and its toughness is poor. The cans are easy to be broken, so it is not suitable for redialing cans. It can be used for deep-flushing cans.
6. The chrome plate has high temperature resistance, generally no significant change in color and hardness at 5000 °C, and it begins to soften at 7000 °C.

Mechanical behavior


Differentiation (one cold rolled plate)parameter
T-1T-1.5T-2T-2.5T-3T-4T-5
Hardness (HR30Tm)49±451±453±455±457±461±465±4



Chrome plating technical requirements

Metal chrome platingChrome oxide coating
Minimum averageMaximum averageMinimum averageMaximum average
50150335



surface condition

Finished productCode numberdistinguishRoughnessfeature
One-time cold-rolled steel plate and stripBBright surface≤0.4A glossy surface obtained by replating a tin after chrome plating on a smooth surface with an extremely fine gargoyle pattern
R1Rough surface0.4-0.9A glossy surface obtained by reflow treatment after chrome plating on a base plate characterized by a certain directional magic stone pattern
R2 0.9-2.0A glossy surface obtained by reflow treatment after chrome plating on a base plate characterized by a certain directional magic stone pattern
SSilver surface≥2.0Glossy surface without tin re-melt treatment after chrome plating on a mat with a rough and matt surface



ItemUnitRequirementTolerance
Length      m1000-5000±50
            Width      mm12-1100±0.5
ThicknessSteel base tape      mm0.105-0.200±0.01
Chrome-Coated contents      g/㎡0.08-0.34
Tensile Strength      Mpa310-390
Break Elongation%≥15
Dielectric Strength DC 2KV,1 min      ---Without breakdown
Corrosion resistance      GradeGrade 8


4. Galvanized Steel Tape

Cut narrow or large rolls

ItemStandard
Thickness0.20mm-1.0mm
With20mm-1250mm,Cut narrow or large rolls
Zinc coating60-275g/m2
Tensile Strength

320~410Mpa

Break Elongation20%
