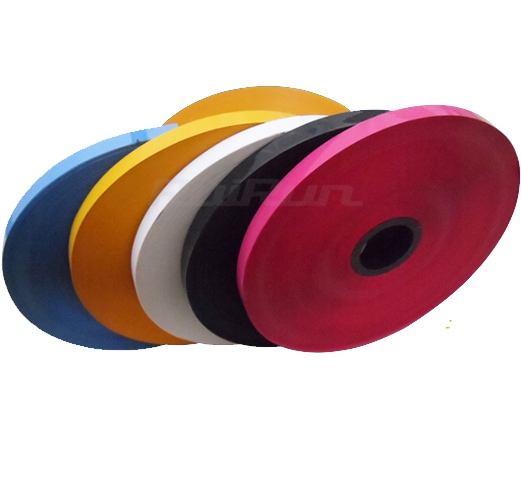

Cable Marking Tape


It is the pigmented Heat transfer printing tapes and used for marking on thepolyethylene jacket of telecommunication cables.The marking tapes should be non-toxic, excellent quality in printing with abrasionresistant prints.



Specification:



No.

Property

Unit

Typical value

Test Method

1

Color

/

White, Yellow

DIN 1712

2

Flash point

oC

Min300

/

3

Melting Point

oC

Min200

/

4

Ultimate tensile strength

N/mm2

Min 10

ASTM D-882

5

Stamping Temperature

oC

Max 170

/

6

Thickness of foil

µm

12±2

ISO 9073-2

7

Thickness of coating

µm

8±2

8

Total thickness

µm

10±2

9

Color fastness

times

Min 12

ISO 105 E01

Pads Dimension

-Tape length              Min1000±10m

-Tape width                8-20mm

-I.D of PAD                 25 mm

The tape pad is in one continuous length without any splices or joints. Padsare tightly wound on hard Fiber cores.
