铝带

更多信息,请联系: sales@qdhetian.com.

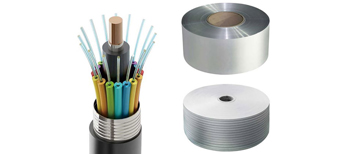

1. Copolymer coated aluminum tape

CCAT consists of an aluminum tape coated on both sides with adherent ethylene copolymer either clear or color-coded blue .

CCAT consists of an aluminum tape coated on both sides with adherent ethylene copolymer either clear or color-coded blue . The copolymer exhibits excellent adhesion to the aluminum substrate and has the chemical resistence and general characteristics of low-density polyethylene , it bonds to low , linear low , medium and high density polyethylene.



ItemUnitRequirementTolerance
Lengthm1000-4100±50
Widthmm12-1050±0.5
  ThicknessAluminum Tapemm0.150/0.200±0.010
Copolymer(EAA)mm0.058±0.013
Totalmm0.260/0.310±0.015
Tensile StrengthMpa≥65
Break Elongation%≥15
Peel StrengthN/cm≥6.13
Heat Seal StrengthN/cm≥17.5
Water Resistance 68±1℃,168hN/cm≥6.13
Jelly Resistence 68±1℃,168h-------No separation
Dielectric Strength DC2KV,1min-------Without breakdown
Corrosion Resistance0.1mol/L,Hcl,480hGrade≥Grade7
Appearance:plain,smooth,uniform,free from foreign matters,wrinkles,piebald and other defects.



2. Single Side Aluminum polyester tape






Aluminum Foil tape with one side PET film is also called “Single Side Aluminum PolyesterTape”, it is used as a shielding foil for cables which must be free ofelectromagnetic or electrostatic interference. It’s used as a shield intelecommunication cables, such as electronic cables, data cables, coaxialcables, LAN cables (CAT5/CAT6/CAT7), signal cables, etc.




AL10+PET25, 35µm

No.

  Property

Unit

Typical value

Test Method

1

Total Thickness

um

38±3

/

2

Tensile strength

N/mm2

Min 100

ASTM D882

3

Elongation at break

%(1cm)

Min 80

4

Volume Resistivity

ohm,mm2/m

Max 0.02827

ASTM B193

5

Thickness of AL foil

um

10±1

ASTM D374

6

Thickness of PET film

 um

25±2

7

Total Unit weight

g/m2

63.3±10%

/

8

Total Yield

m2/kg

15.8±10%

9

Color of PET film

Natural (Silver)





AL12+PET40, 55µm

No.

  Property

Unit

Typical value

Test Method

1

Total Thickness

um

55±5

/

2

Tensile strength

N/mm2

Min 100

ASTM D882

3

Elongation at break

%(1cm)

Min 80

4

Volume Resistivity

ohm,mm2/m

Max 0.02827

ASTM B193

5

Thickness of AL foil

um

12±1

ASTM D374

6

Thickness of PET film

 um

40±2

7

Total Unit weight

g/m2

94.9±10%

/

8

Total Yield

m2/kg

10.5±10%

9

Color of PET film

Natural (Silver)




Rollswill be shipped in strong wooden boxes. The container is constructed towithstand hanging during shipment and allow for transportation with forklift-truck. Rolls are mounted on a steel tube passing through their core andtube is suspended in wooden box in such a way so that provides free clearancefrom wooden box sides. Rolls or Pads are bonded to prevent loosening duringtransportation, slatted reel; pads are separated from each other by card board discs.
